Beskrivning
Art.nr: 153382
Technical Data
SizeMini
Mounting positionoptional

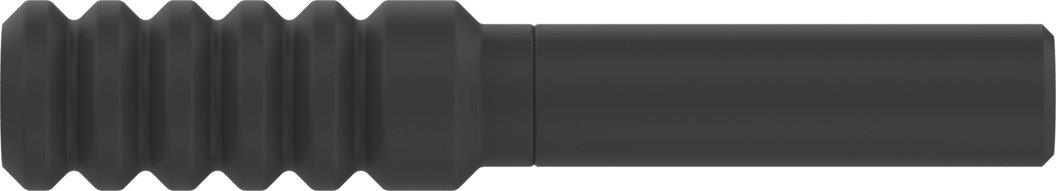

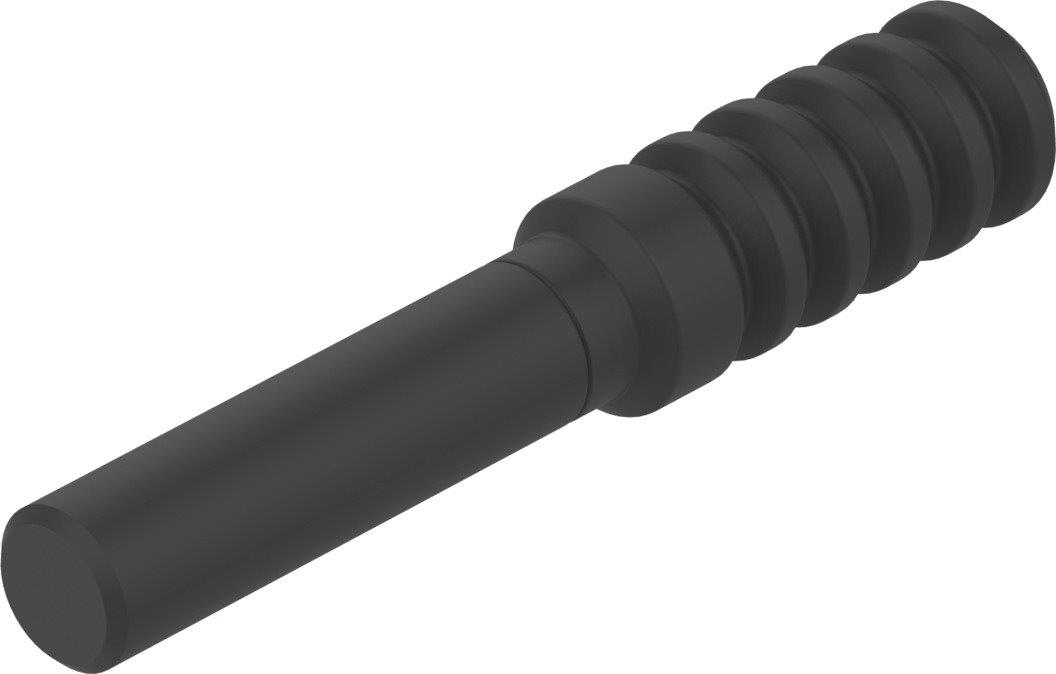

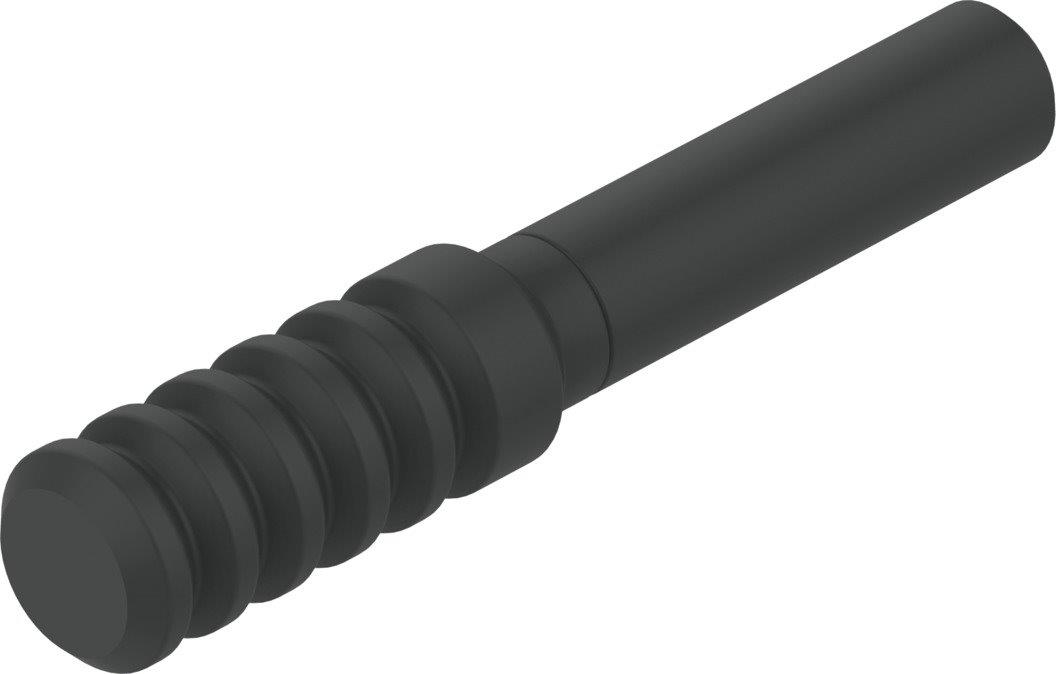

DesignBlanking plug
Size of pack10
Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
Operating pressure complete temperature range-0.95 bar ... 6 bar
Operating pressure complete temperature range-13.775 psi ... 87 psi
Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure-0.95 bar ... 14 bar
Temperature-dependent operating pressure-13.775 psi ... 203 psi
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10 °C ... 80 °C
Product weight0.2 g
Pneumatic connection, port 1Push-in sleeve Ø 3 mm
Note on materialsRoHS-compliant
Material housingPBT
