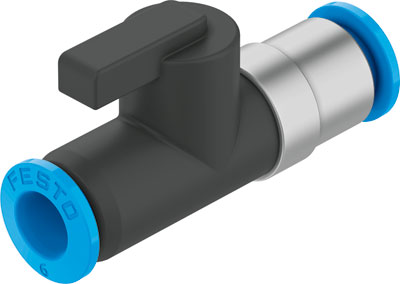

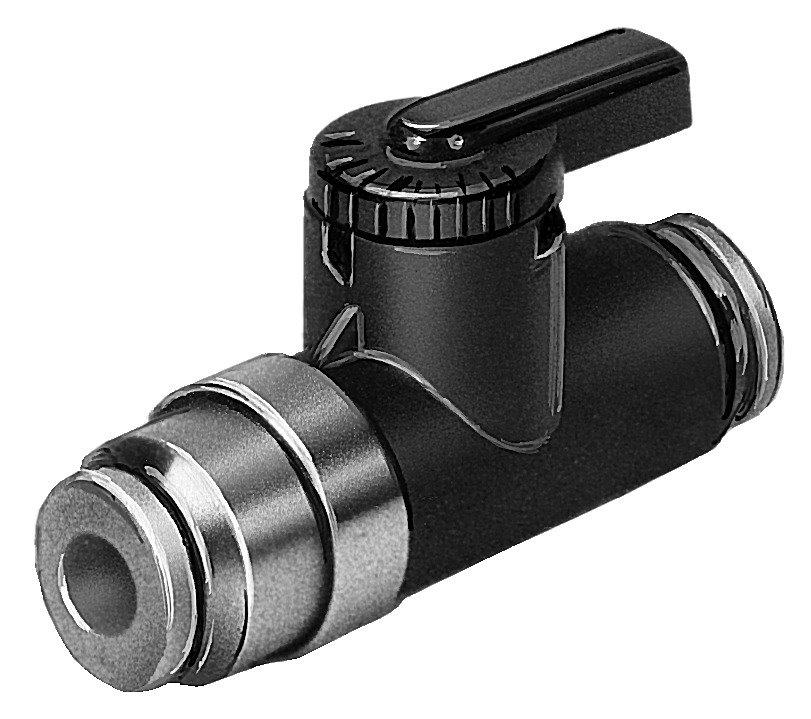

Festo kulventil för 6mm slang
229 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 153484
Technical Data
Valve function2/2 double solenoid
Pneumatic connection, port 1QS-6
Pneumatic connection, port 2QS-6
Type of actuationManual
Type of mountingIn-line installation
Standard nominal flow rate (standardised to DIN 1343)533 l/min
Nominal size4 mm
Operating pressure-0.1 MPa ... 1 MPa
Operating pressure-1 bar ... 10 bar
Ambient temperature0 °C ... 60 °C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Sealing principleSoft
DesignBall valve
Symbol00991458
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight12.5 g
Note on materialsRoHS-compliant
Valve function2/2 double solenoid
Pneumatic connection, port 1QS-6
Pneumatic connection, port 2QS-6
Type of actuationManual
Type of mountingIn-line installation
Standard nominal flow rate (standardised to DIN 1343)533 l/min
Nominal size4 mm
Operating pressure-0.1 MPa ... 1 MPa
Operating pressure-1 bar ... 10 bar
Ambient temperature0 °C ... 60 °C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Sealing principleSoft
DesignBall valve
Symbol00991458
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight12.5 g
Note on materialsRoHS-compliant
