Beskrivning
Art.nr: TFZERO

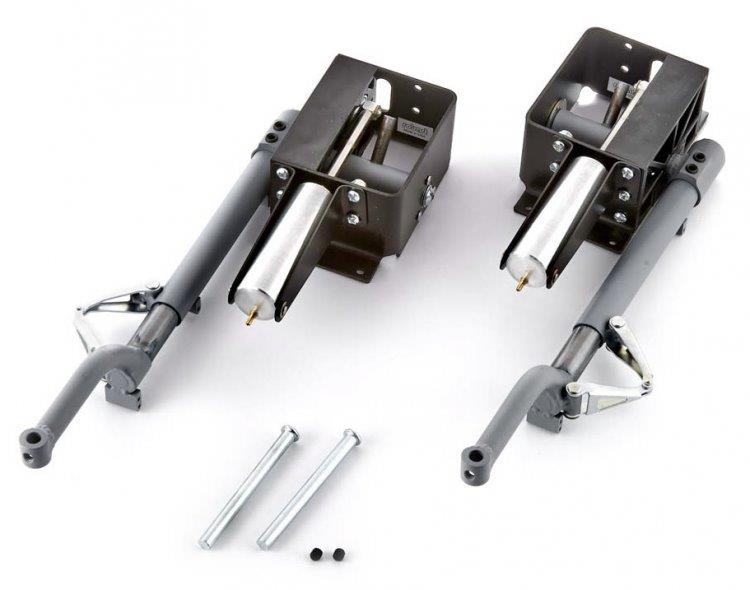

Robart Top Flite Giant Zero Pneumatic Main Retracts
This is a pair of Robart Pneumatic Retracts for the Giant Scale Gold Edition Zero A6M from Top Flite, TOPA0712.
REQUIREMENTS
157VR Large Air Control Kit
169 Pressure Tubing 10'
160WC Fork Pneumatic Tail Wheel
SPECIFICATIONS
Mounting Hole Centers (Lengthwise): 4" (102mm)
Mounting Hole Centers (Widthwise): 1-13/16" (46mm)
Strut Length/Top to Axle Hole Center: 10-1/8" (257mm)
Strut Deployment Angle: 85°
Axle Hole Diameter: 1/8"
Length/Mounting Bracket to Cylinder Assembly: 6-1/4" (158mm)
Length/Mounting Bracket to Bottom of Strut: 9-1/16" (230mm)
Strut Center to Center of Mounting Bracket Hole: 2" (51mm)
